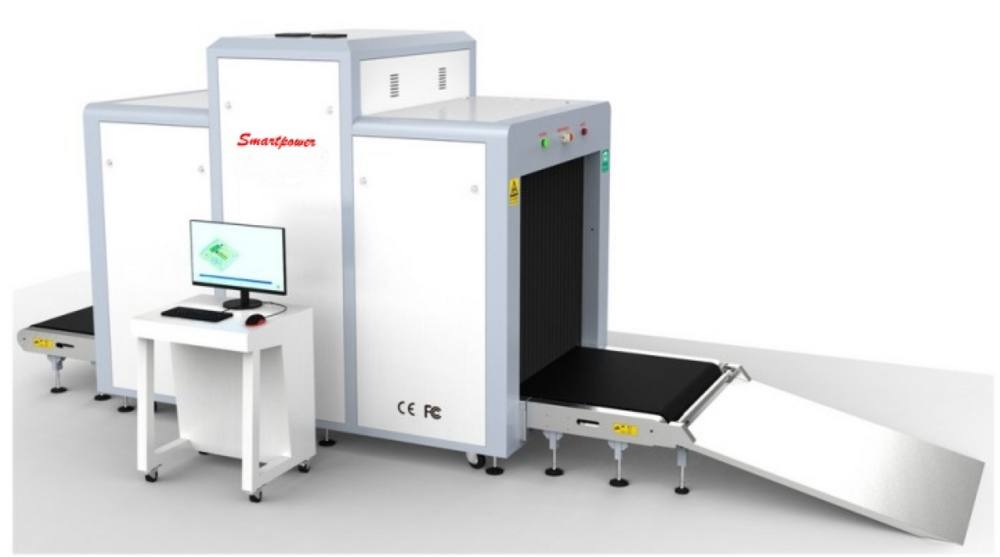

Send InquiryBaggage Scanner
Price 590000 INR/ Piece
MOQ : 1 Piece
Baggage Scanner Specification
- Input Power
- 220V AC, 50Hz
- Temperature Range
- 0C to 45C
- Usage
- Airport, Metro Stations, Railway station, Public places
- Material
- Mild Steel
- Color
- White and Blue
- Weight
- 350 kg
- Frequency
- 50 Hz
- Dimension (L*W*H)
- 2100 mm x 850 mm x 1300 mm
- Product Type
- Baggage Scanner
- Alarm
- Audio/Visual Alarm on Detection
- Tunnel Size
- 650 mm x 500 mm
- Image Processing
- Edge Enhancement, Image Zoom, Organic/Inorganic Imaging
- Resolution
- 0.0787 mm (40 AWG wire)
- Operating System
- Windows Embedded
- Scan Method
- Dual Energy X-ray Transmission
- Storage Capacity
- Up to 50,000 images
- Connectivity
- USB, Ethernet Port
- Conveyor Speed
- 0.22 m/s
- Cooling System
- Industrial Fans
- Ray Direction
- Bottom-up View
- Operation Humidity
- 0-95% (non-condensing)
- X-ray Dose Per Inspection
- Less than 1.5uGy
- Safety Standard
- CE, ISO Certified
- Display Type
- High-resolution LCD monitor
- Penetration
- 30 mm Steel
About Baggage Scanner
X-ray Baggage scanner is ideal for screening everything from mid-size packages to oddly shapeditems and palletized loads. It is strategically designed for mid-size baggage and parcels to thwartthe cleverest attempts at hiding drugs, stolen goods, and other contraband. Dual-energyimaging provides automatic color coding of materials
- Linux Operating System
- Continuous 10000 working hours
- Scan Palletized loads
- Built-in Self-Check & Diagnosis
- High-resolution color display
- Sound & Light Alarm
Advanced Detection Capabilities
Featuring dual energy X-ray technology, this scanner penetrates up to 30 mm of steel and achieves a resolution of 0.0787 mm, enabling it to spot fine wires and concealed threats. This technology, paired with advanced image processing functionalities such as edge enhancement and organic/inorganic imaging, ensures accurate and swift identification of dangerous items.
Designed for High-Traffic Environments
With its 650 mm x 500 mm tunnel and conveyor speed of 0.22 m/s, the scanner is optimized for busy settings like airports, metro stations, and railway stations. Its sturdy build in mild steel and a weight of 350 kg underpins longevity even under continuous use, while an efficient cooling system keeps operations stable.
User-Centric Operation & Safety
The system includes both audio and visual alarms upon detection of suspicious items for effective operator response. The high-resolution LCD monitor provides clear imagery, and the Windows Embedded operating system makes it straightforward to use. Safety, with CE and ISO certification, is assured for operators and passengers alike.
FAQ's of Baggage Scanner:
Q: How does the baggage scanner ensure accurate detection of dangerous items?
A: The scanner employs dual-energy X-ray transmission with a penetration capability of 30 mm steel and a resolution of 0.0787 mm (40 AWG wire), allowing for precise identification of both organic and inorganic materials, including small or concealed threats.Q: What type of environments is this baggage scanner suitable for?
A: It is specifically designed for high-security public areas such as airports, metro stations, railway stations, and other locations where reliable and rapid screening of luggage is required.Q: When should operators use the zoom and edge enhancement features?
A: Operators are encouraged to use zoom and edge enhancement when they need to analyze questionable objects in greater detail, improving the ability to distinguish between innocuous items and potential threats.Q: Where can the image data from the scanner be stored and accessed?
A: The scanner can store up to 50,000 scanned images internally, and image data can be easily accessed via USB or Ethernet port for further analysis or reporting as needed.Q: What is the process for an alarm on detection?
A: When a suspicious or prohibited item is detected, the scanner triggers an immediate audio and visual alarm, ensuring staff are promptly alerted to investigate the flagged luggage.Q: How does the scanner maintain reliable performance during continuous operation?
A: It is equipped with industrial fans for cooling and constructed from mild steel for durability. The system operates efficiently within a temperature range of 0C to 45C and humidity of up to 95% (non-condensing).Q: What benefits does this model offer over traditional scanning solutions?
A: This model provides high-resolution imaging, rapid processing, large storage capacity, and enhanced safety compliance (CE, ISO certified), making it a dependable, user-friendly, and future-ready solution for modern security needs.
