Send InquirySliding Gate Motor
Price 105000.00 INR/ Set
MOQ : 1 Set
Sliding Gate Motor Specification
- Frame Material
- Other
- Gross Weight
- 15-25 kg (varies by model)
- Arm Length
- Not Applicable (for track type motors)
- Open Style
- Sliding
- Technics
- Other
- Color
- Grey/Black
- Style
- Modern
- Width
- Customizable (as per gate design)
- Size
- Standard or Customized
- Feature
- Other
- Type
- Sliding Gate Motor
- Material
- Aluminum Alloy and Steel
- Surface Treatment
- Powder Coated
- Height
- Customizable (per gate size)
- Length
- Customizable (depends on gate span)
- Processing
- Other
- Gate running speed
- 12 m/min - 15 m/min
- Input Voltage
- 220V 10%, 50Hz / 110V, 60Hz
- Operating Temperature
- -20C to +60C
- Control Panel
- Integrated with manual override
- Installation Area
- Outdoor/Indoor use
- Enclosure Rating
- IP44 or above
- Limit Switch Type
- Magnetic/Mechanical
- Remote Control Distance
- Up to 30 meters
- Duty Cycle
- S2 15min continuous
- Motor Power
- 370W - 750W (model dependent)
- Safety Features
- Obstruction Detection, Manual Release, Safety Photocell (optional)
- Noise Level
- <55 dB
- Maximum Gate Weight
- Up to 2000 kg
Sliding Gate Motor Trade Information
- Minimum Order Quantity
- 1 Set
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 100 Sets Per Month
- Delivery Time
- 15 Days
- Sample Policy
- Contact us for information regarding our sample policy
- Main Domestic Market
- East India, Andaman and Nicobar Islands, Assam, Bihar, Delhi, Gujarat, Himachal Pradesh, Madhya Pradesh, Maharashtra, Punjab, Sikkim, Tripura, West Bengal, Odisha, Jharkhand, Chhattisgarh, All India
- Certifications
- CE, ISO 9001:2015
About Sliding Gate Motor

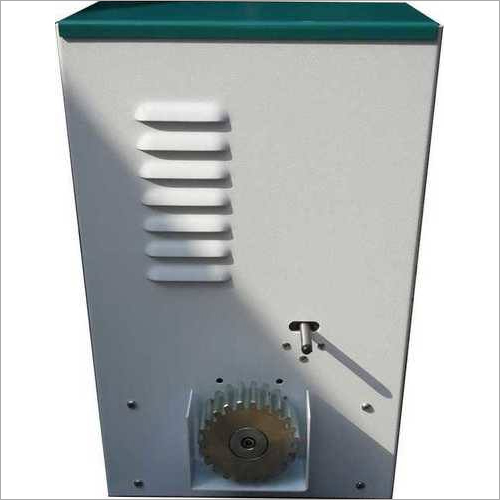

Sliding Gate Motor
Automatic Rolling Gate Motor are specially designed Motors to operate Sliding Gates. It can be operated electrically and operated by switch, remote or any other access control system.
Features
- Gate weight 2500 3000 Kg
- RF Remote controlled operated
- Manual operation on power fail
- Thermal Sensor protection
- Safety Photo Sensor
- Anti rebound technology
- 15 meter / minute speed
- Built in Gear Box
Technical Specification
|
Gate Weight |
3000 Kg |
|
Power12 |
1200 W |
|
Open Speed Time |
15 m/min |
|
Motor Voltage |
230 V |
Heavy-Duty and Weatherproof Construction
Built from premium aluminum alloy and steel, this sliding gate motor is die-cast and powder coated, ensuring outstanding corrosion resistance and weatherproof performance. Designed to endure harsh outdoor conditions, the motor functions reliably within an operating temperature range of -20C to +60C. Its customizable dimensions mean compatibility with various gate designs and sizes, providing flexibility for residential, commercial, or industrial use.
Efficient and Quiet Operation
Featuring a motor power of up to 750W and gate running speeds between 12 and 15 meters per minute, this motor enables swift access without sacrificing quiet performancerated at less than 55 dB. The integrated control panel and magnetic or mechanical limit switches ensure smooth and precise gate movement. With S2 15-minute continuous duty cycle, users gain dependable operation even during frequent use.
Enhanced Safety and User Convenience
Safety is ensured with built-in obstruction detection and manual release, alongside an optional safety photocell. The remote control functionality works at distances up to 30 meters, making gate access easy from inside vehicles or buildings. In case of power failure or emergencies, the manual override enables quick access. IP44 or higher enclosure rating further protects the motor electronics from dust and moisture, increasing reliability.
FAQs of Sliding Gate Motor:
Q: How does the sliding gate motor handle heavy gates?
A: The sliding gate motor is engineered with powerful motors (370W750W, depending on the model), allowing it to smoothly operate gates weighing up to 2000 kg. Its durable aluminum alloy and steel construction, coupled with a robust drive system, ensures consistent performance for heavy-duty applications.Q: What are the installation requirements for this motor?
A: This motor is suitable for both indoor and outdoor use, thanks to its weatherproof IP44 or above enclosure and powder coated surface. Installation areas must provide an appropriate power sourceeither 220V 10%, 50Hz or 110V, 60Hzand compatibility with your gate size and design. Professional installation is recommended for optimal safety and performance.Q: When should I use manual override or release features?
A: Manual override or release is useful during power failures or emergencies, allowing you to operate the gate manually without electrical power. This feature ensures access and safety under unforeseen circumstances, preventing users from being locked in or out.Q: Where is the best place to install the sliding gate motor?
A: The motor can be installed outdoors or indoors, provided the mounting surface is stable and appropriate power connections are available. Its suitable for residential, commercial, or industrial locations throughout India due to its customizable dimensions and weatherproof features.Q: What safety features are included with the sliding gate motor?
A: Safety features include obstruction detection, which automatically stops the gate if an object is in the path, manual release for emergencies, and an optional safety photocell to prevent accidents. These ensure safe usage for both property and personnel.Q: How is the customization process for gate size and motor specifications managed?
A: Customization is determined by your gates length, height, width, and design requirements. Manufacturers and suppliers in India offer tailored solutions, adapting motor power, frame materials, and dimensions to match unique gate configurations. Coordination is recommended with professionals during the ordering and installation phases.Q: What are the benefits of choosing this sliding gate motor over conventional systems?
A: This motor offers efficient automation, heavy-duty performance, customizable design, weatherproof reliability, and enhanced safety. The remote control and quiet operation add convenience, while corrosion-resistant materials and modern aesthetics contribute to durability and property value.
